Gauging Stations
Gauging Stations

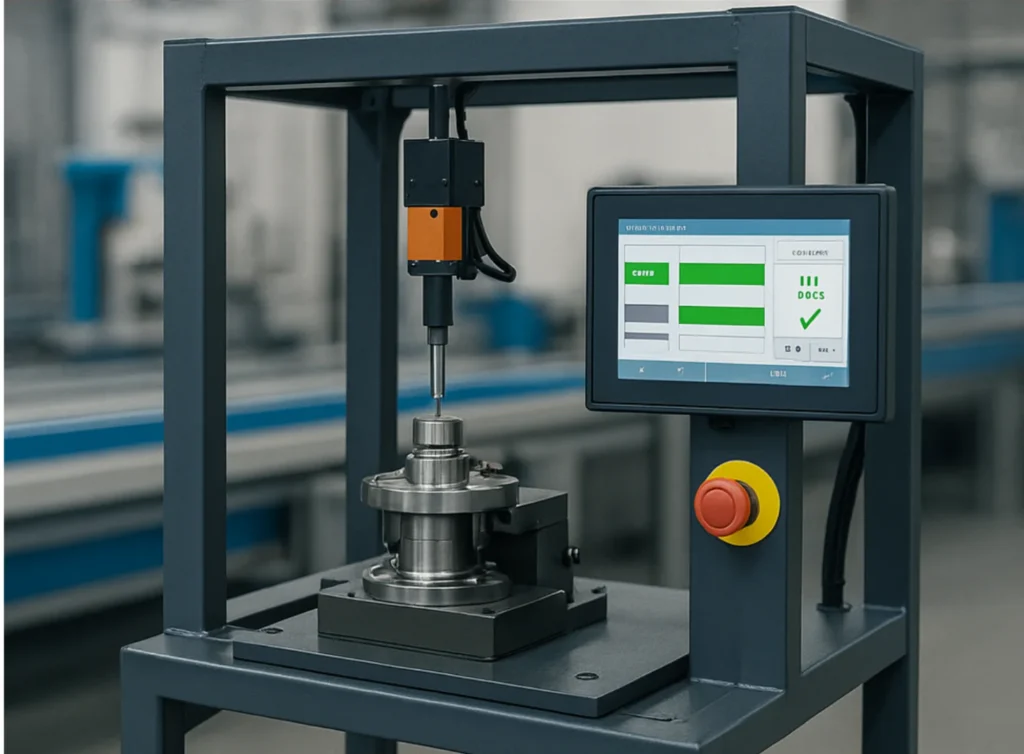

Ensure product quality, dimensional accuracy, and process control with our high-precision Gauging Stations for Assembly Line Automation. Designed to deliver fast, reliable measurements directly on the production floor, our gauging stations integrate seamlessly into your assembly line to detect deviations early, minimize rework, and maintain consistent quality standards. From simple dimensional checks to complex multi-parameter inspections, we offer fully customized gauging solutions tailored to your specific needs.
Standard Features
- High-Accuracy Measurement Devices: Equipped with linear gauges, digital micrometers, laser sensors, or LVDTs.
- Custom Fixtures and Tooling: Precisely designed to match component geometry and inspection points.
- Real-Time Data Collection: Instant measurement results displayed on HMI or SCADA systems.
- Automatic Pass/Fail Indicators: Immediate visual or signal-based feedback for operator or system intervention.
- Industrial Connectivity: Ethernet/IP, Profinet, and Modbus support for integration into automation systems.
- User-Friendly Interface: Intuitive screens for setup, calibration, and live monitoring.
Optional Features
- Multi-Station Gauging Systems: Simultaneous measurement of multiple features in one station.
- Inline Automatic Rejection Systems: Automatically remove out-of-spec parts from the conveyor/line.
- Integration with Vision Systems: Combine gauging with visual inspections for enhanced quality control.
- Temperature Compensation: Maintain accuracy even in fluctuating environmental conditions.
- Wireless Data Transmission: For flexible setups without complex cabling.
Key Features
- High-Speed, Non-Contact or Contact Measurement: Adaptable based on part and accuracy requirements.
- Customizable Gauging Solutions: Configurable for different sizes, materials, and tolerances.
- Data Logging and Reporting: Store, analyze, and export measurement data for quality documentation.
- Error-Proofing and Poka-Yoke Mechanisms: Ensure only correctly measured parts move to the next process.
- Durable Construction: Built to withstand harsh industrial environments and repetitive use.
Why Choose Our Gauging Stations?
- Exceptional Precision: Meet the tightest industry tolerances effortlessly.
- Tailor-Made Solutions: Designed to match your part geometry and inspection requirements.
- Faster Decision Making: Immediate measurement feedback to operators and systems.
- Traceability Assurance: Complete data history for compliance and audits.
- Minimal Downtime: Rugged, low-maintenance design for continuous operation.
Applications
- Dimensional inspection of machined components
- Assembly verification (gap, flushness, alignment checks)
- Bore diameter and depth measurements
- Height, width, and thickness measurement
- Inline quality control in automotive, aerospace, and precision engineering
Industries Served
- Automotive
- Aerospace
- Precision Engineering
- Electronics Manufacturing
Medical Devices
